Victorinox
Victorinox introduced the pliers on the new 91mm SwissChamp model in 1985/6, making it a relatively recent tool. Since then it has gone through three/four versions. The pliers are opened by picking up the end of the tool, which protrudes slightly beyond the end of the frame - An equivalent technique to the deployment of the saw.
The same pliers are installed in the 111mm models*, however they have a nail nick on the side to enable deployment, since the knife body is longer than the pliers, so does not allow access to the end of the tool. The pliers in the 111mm models are always paired with a short, end mounted, inline Phillips screwdriver.
* Note: This is somewhat unusual as normally tools are re-designed for different frame sizes.

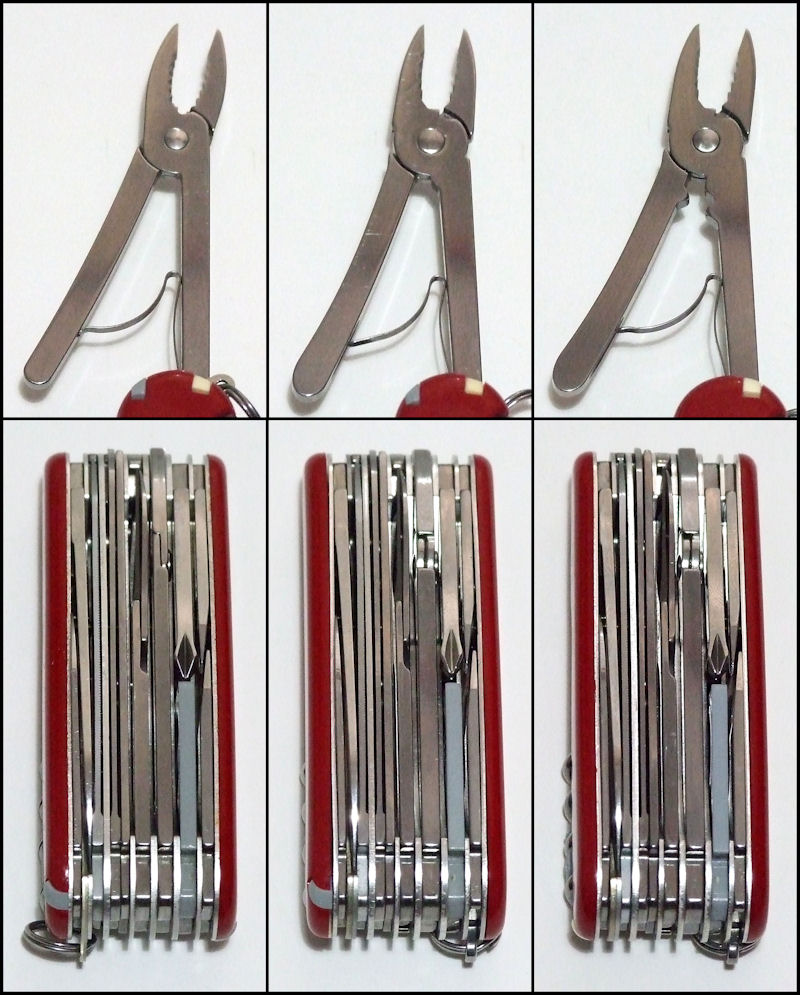

Versions of the pliers tool
1. 1985/6 - 1987: 2.5mm wide - Although note: This version appeared in the Oath of Rutli model in 1991
2. 1987 - 1990: 3mm wide; new pivot joint; handle has added contour
2a. 1990 - 1995: Spring guiding groove added (1990 date is estimate, assumed to be the same date as the scissors groove was added)
3. 1996 - current: Crimpers added
|
Click for Full Comparison | |
Version 2a Pliers
|
Models with the Pliers
- Special Mechanic - 91mm, 2-layers
- Mechanic - 91mm, 3-layers
- Angler - 91mm, 4-layers
- Bass Fishing - 91mm, 4-layers
- Deluxe Climber - 91mm, 4-layers
- Deluxe Tinker - 91mm, 4-layers
- Master Electrician - 91mm, 4-layers
- Yeoman Mechanic - 91mm, 4-layers
- Cybertool 34 / M - 91mm, 5-layers
- Deluxe Angler - 91mm, 5-layers
- Master Fisherman - 91mm, 5-layers
- Motorist - 91mm, 5-layers
- Troubleshooter - 91mm, 5-layers
- Craftsman - 91mm, 6-layers
- Cybertool Lite - 91mm, 6-layers
- Handyman - 91mm, 6-layers
- Cybertool 41 / L - 91mm, 7-layers
- SwissChamp - 91mm, 8-layers
- SwissChamp XL - 91mm, 11-layers
- SwissChamp XLT - 91mm, 11-layers
- SwissChamp XAVT - 91mm, 15-layers
- SwissChamp XXLT - 91mm, 15-layers
- 111mm models that contain the pliers - Follow this link
Wenger
85/120mm
Wenger small, inline pliers are available in some 85mm and 120mm models.
They have a slip-joint design, that enables them to open much wider than their Victorinox counterpart. They have a serrated inner jaw, a hard wire cutter and a regular wire cutter, as well as a crimper.
130mm
Large, fold-out pliers were introduced in Wenger's 130mm 'NewRanger ' series in the Alinghi 176 and 177 models in early 2007. Other NewRanger models with fold-out pliers followed in the fall of 2007.
The jaws and handles of the pliers are a clever three-piece assembly, that folds completely away in the knife handle, when not in use. Despite this complex function, they are quite strong and rugged. The pliers themselves are spring loaded, powered by two individual narrow back-springs, a third back-spring is used for the folding handle mechanism. The jaws have fine serrations near the tips and a coarse gripping area in the center, and an anvil style wire cutter at the back.
See the Ranger 130mm Series Comparison page to check for models with pliers.
85/120mm Pliers
| 130mm Pliers
|
