Shortix Diamond Column Cutter

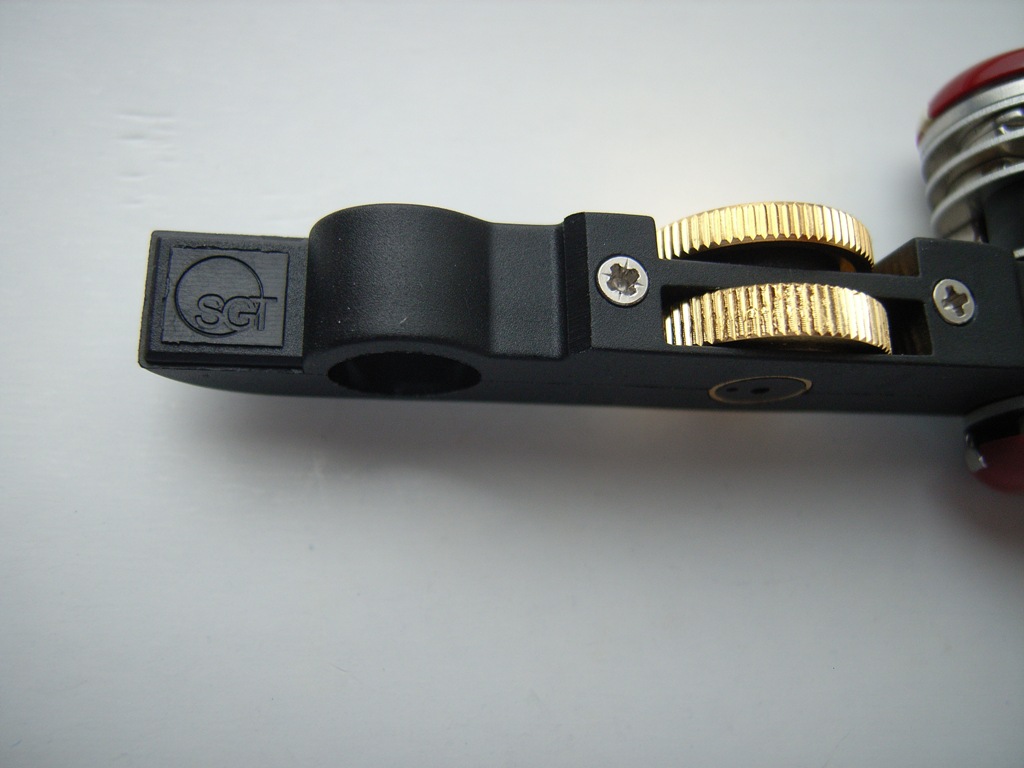

The Shortix diamond column cutter is a tool unique to the SGT Shortix.

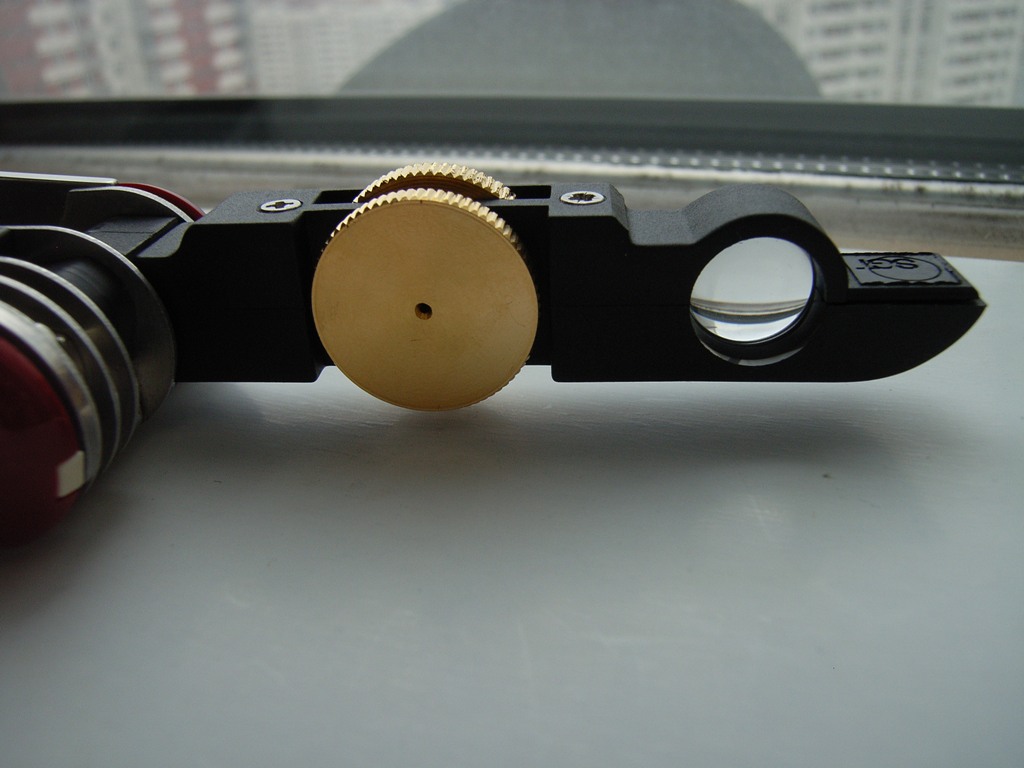

The brass coloured wheel is used for cutting a specialised capillary tube or 'column' used in gas chromatography.
The tube is inserted through a small hole in the middle of the brass wheel, the wheel is rotated, which engages diamond cutters against the tube, that cut the length of tube required.

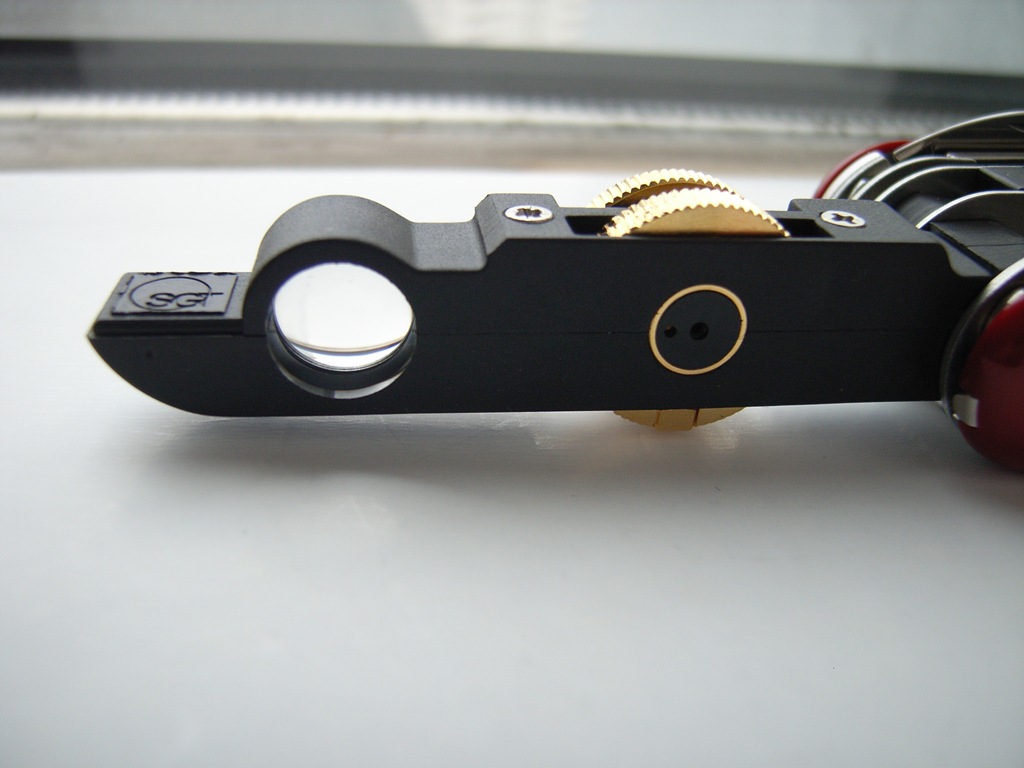

The magnifying glass is to inspect the column end to ensure there is a very clean cut - which is essential for the column to work effectively.

See the users manual here: Page 1, Page 2, Page 3.
